PTFE Sheet Description:
PTFE sheet is used in valve parts because it has the ability to conform to the shape of a mating or sealing, opposing component allowing PTFE to give a low friction long lasting valve seal that is heat and acid resistant. 100% virgin ptfe sheet is made of suspended and compound ptfe resins molded and skived. The Teflon Plastic Sheet has the best features of chemical corrosive resistance and anti-aging in the plastics; and PTFE Sheets have the best coefficient of friction in the solid material; and used in the temperature of - 180 - 260 ℃ under non load.
Virgin Teflon PTFE Sheet Specifications
length*width | Thickness mm | |
nominal | tolerance | |
|
||
150*150 mm | 0.3-100 mm | ±0.3~±0.5 |
250*250 mm | 0.3-100 mm | ±0.3~±0.5 |
300*300 mm | 0.3-100 mm | ±0.3~±0.5 |
500*500 mm | 0.3-100 mm | ±0.3~±0.5 |
600*600 mm | 0.3-100 mm | ±0.3~±0.5 |
700*700 mm | 0.3-100 mm | ±0.3~±0.5 |
800*800 mm | 0.3-100 mm | ±0.3~±0.5 |
1000*1000mm | 0.3-100 mm | ±0.3~±0.5 |
1200*1200mm | 0.3-100 mm | ±0.3~±0.5 |
1500*1500mm | 0.3-100 mm | ±0.3~±0.5 |
2000mm*2000mm | 0.3-100 mm | ±0.3~±0.5 |
items | unit | index |
|
|
|
density | g/cm3 | 2.10~2.30 |
|
|
|
Tensile | MPa | 15 |
strength≥ | ||
|
|
|
Elongation at | % | 150 |
break | ||
|
|
|
Dielectric | Kv/mm | 10 |
strength≥ | ||
|
|
Applications
Corrosion resistant materials and seals, supporting block, guide, electrical insulating parts.
Packing
1) 1-2 days if goods in stock
2) 10-15 days if goods out of stock with molding
Port of Loading Dalian port
Terms of Shipping By Express, Air, Sea etc.
Terms of Payment, T/T in advance,etc.

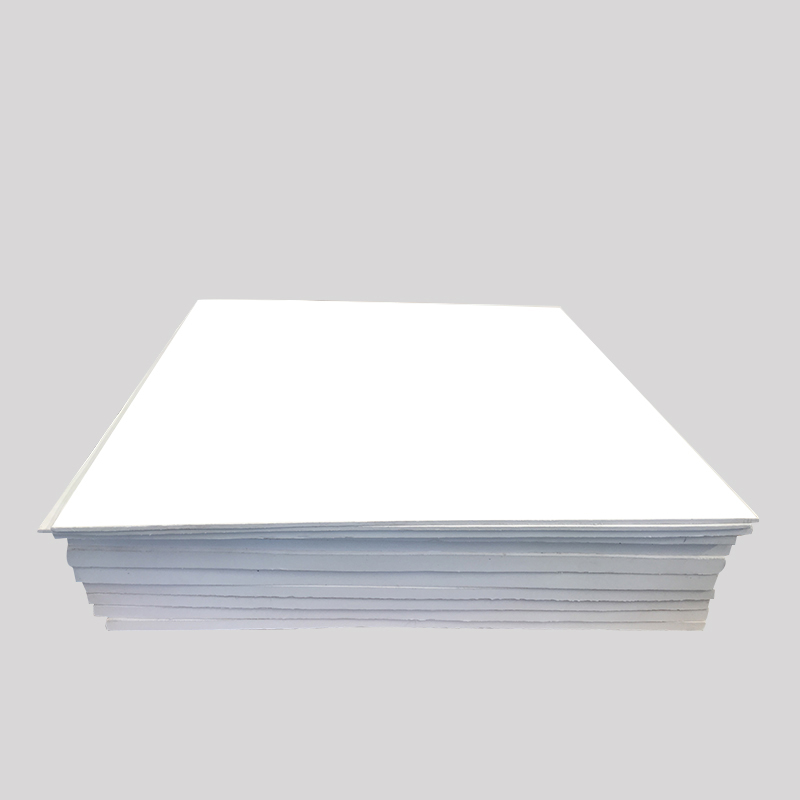

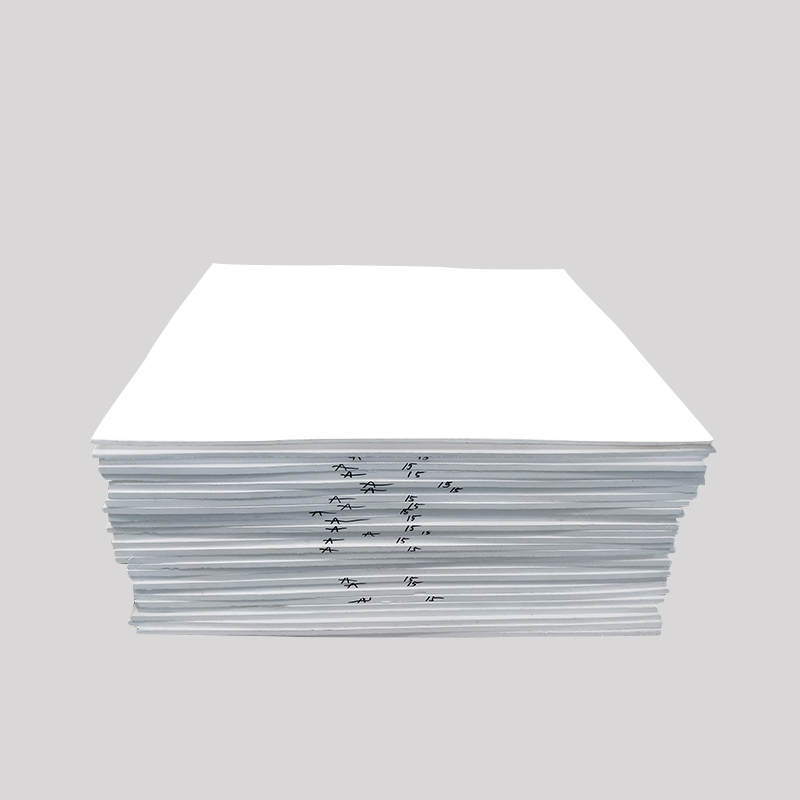

Product display
Related products
Looking for ideal Insulating Teflon Board Sheet Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Insulating Virgin Ptfe Skived Sheet are quality guaranteed. We are China Origin Factory of Insulating PTFE Material Ptfe Sheet. If you have any question, please feel free to contact us.
